OPTIMA 703

Electric Hand Shears

TEXTILE
LEATHER
TECHNICAL
COMPOSITE
SPORT

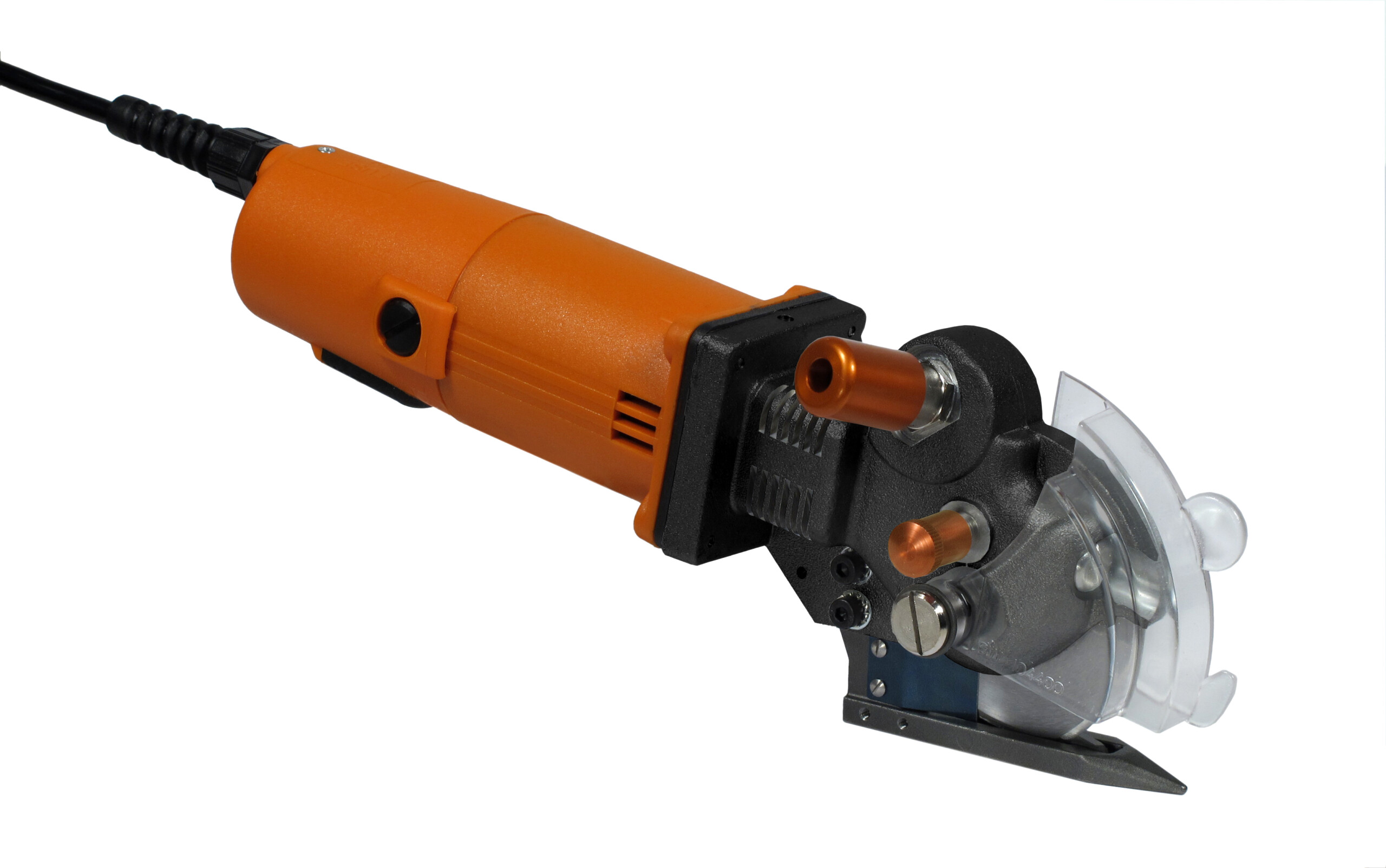

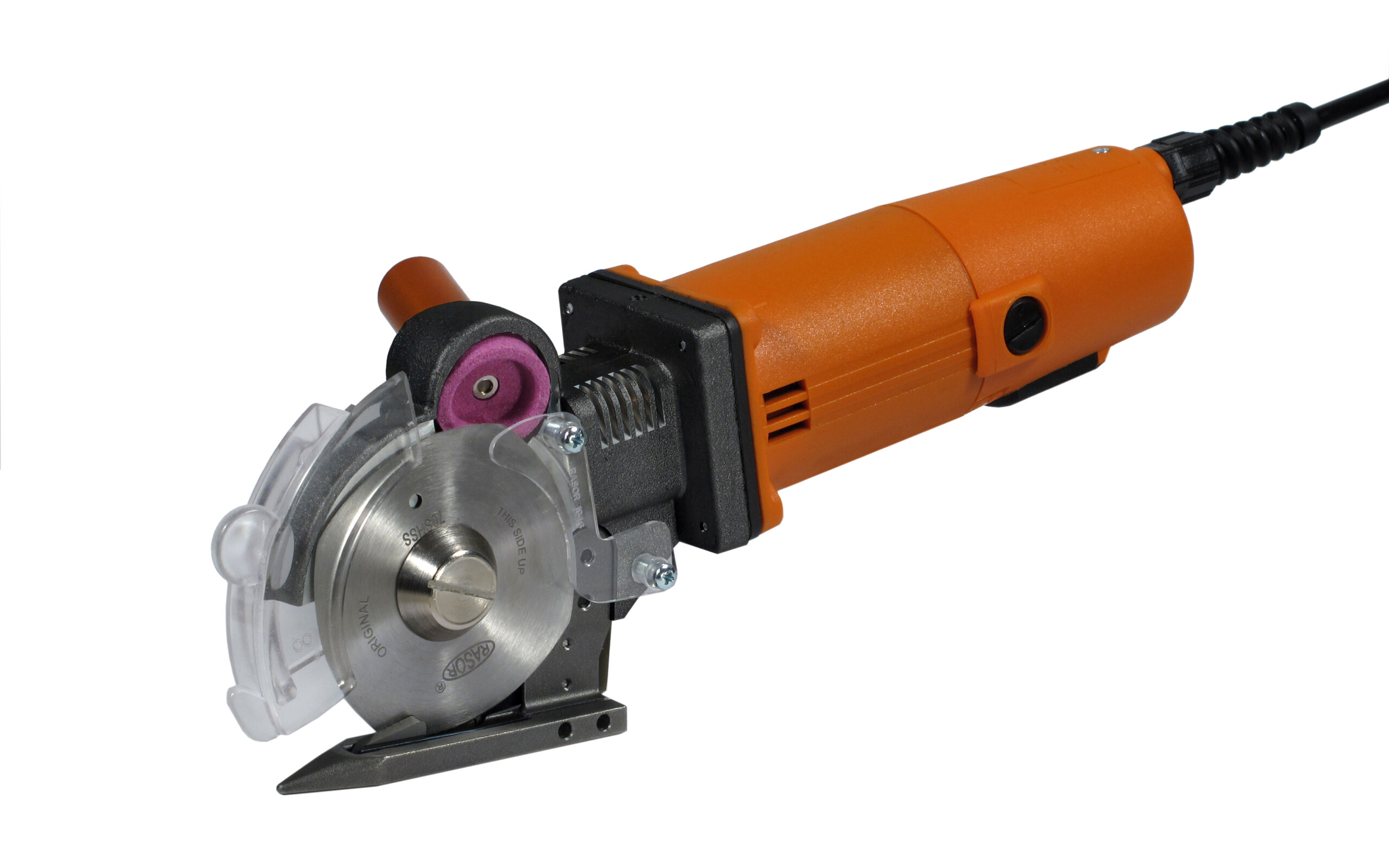

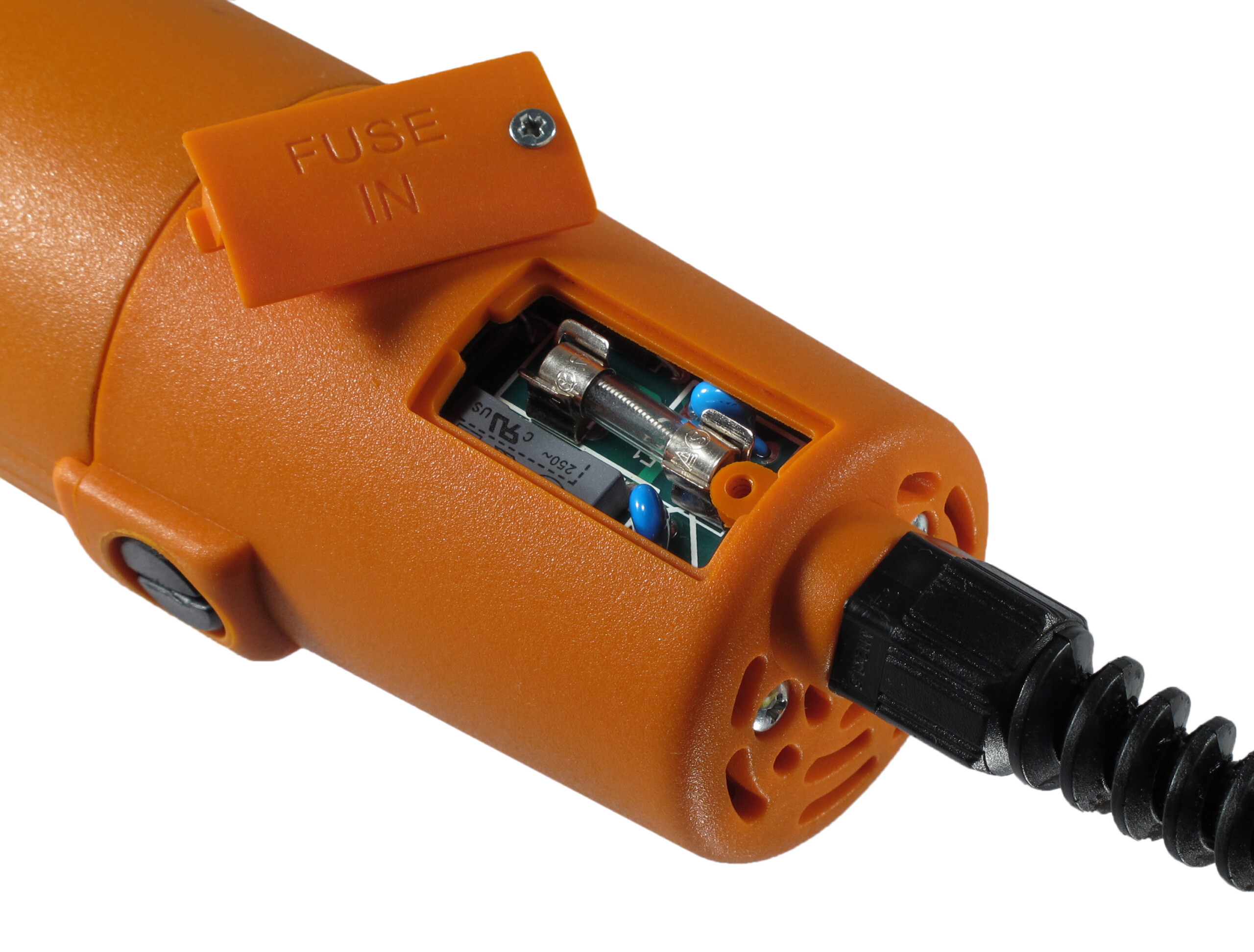

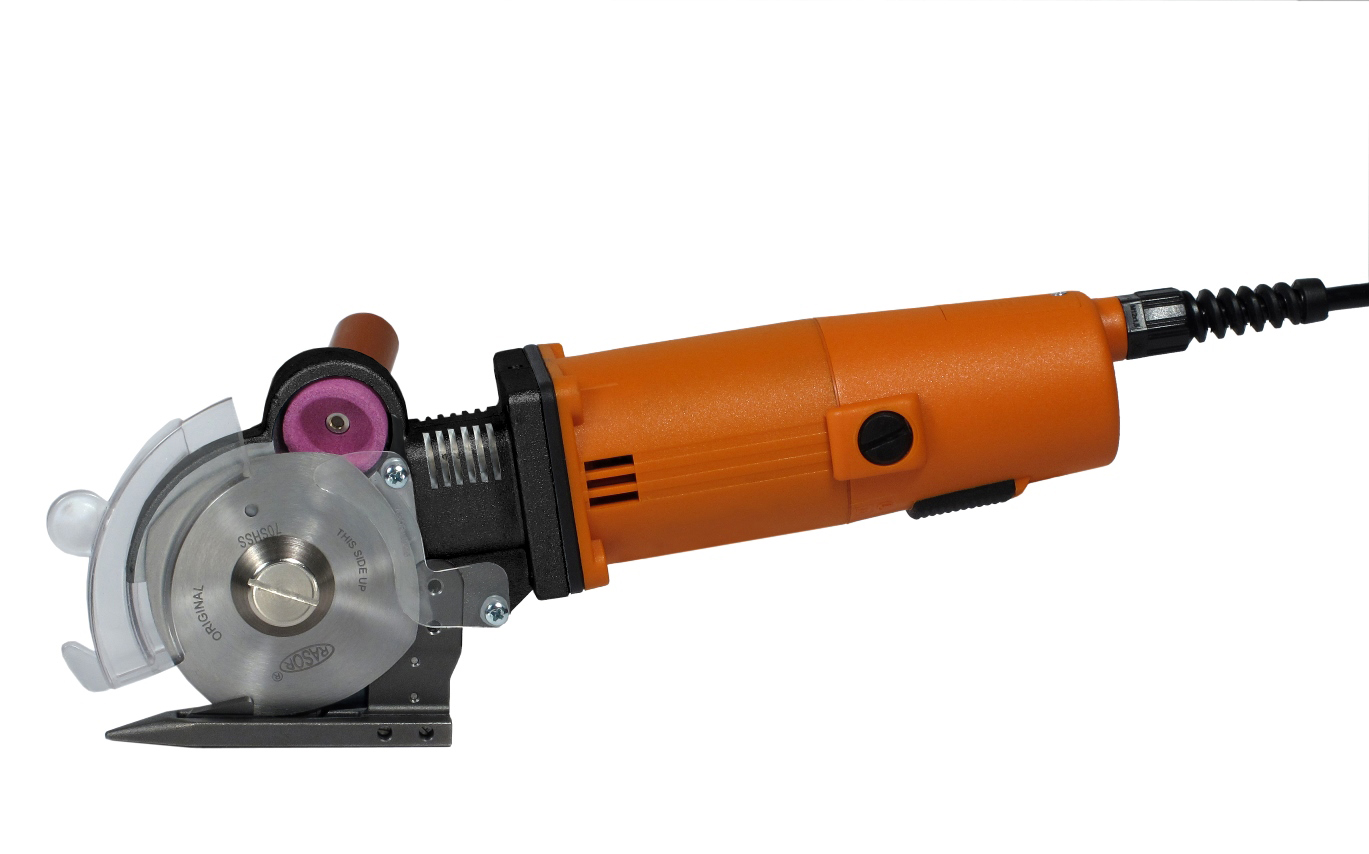

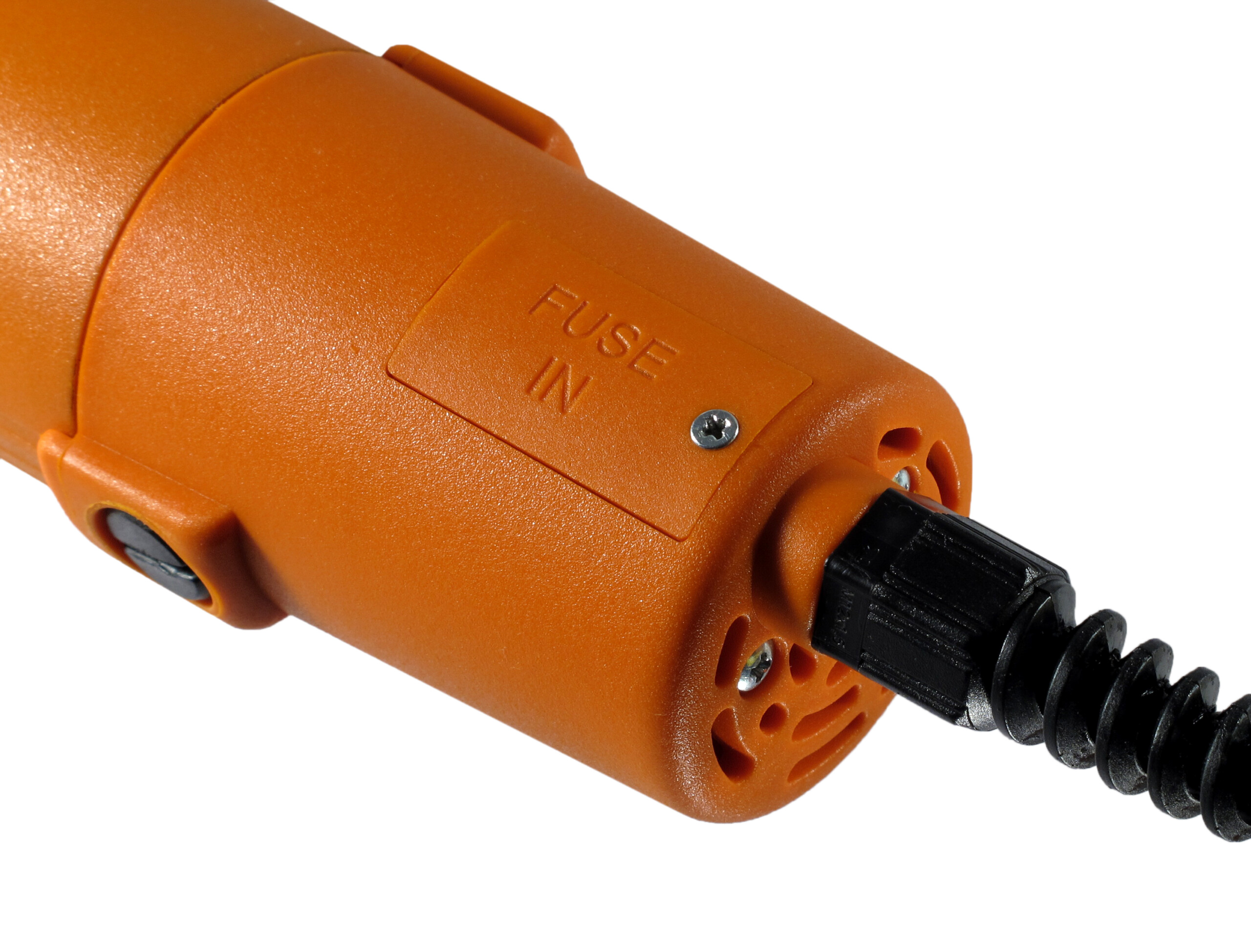

This latest version in the OPTIMA series results a truly revolutionary hand-held cutting machine. Already over 1000 units sold of previous version the new 2019 model grant a highest level in technology ever reached before for a cutting tool of such a small size. Within small size and weight this model OPTIMA 703 reaches a power of 150 Watt which combined with a bonze and high resistance steel gear coupling allows an impressive cutting torque. RPM is now 1500 for ultra fast cut. OPTIMA 703 is able to cut any kind of soft material up to 18mm thickness. It is for this reason which is widely applied in textile, technical fabrics and composite material. The high torque allows to cut also rubber or plastic base material in the field of carpets and flooring. The motor housing is now PTFE coated for heat reducing with an aggressive “look”. The steel foot being strong and of small dimension allows a very precise and easy cut of straight or curve sections. The push button sharpening stone allows the sharpening of the knife edge to be done in less than 10 seconds without removing the knife. The new circuit board includes a glass fuse which can be easily replaced without disassembling the shear and the new rare fixed protection is in transparent plastic to give better visibility during cutting operation. OPTIMA 703 is the cutting tool most revolutionary and powerful on the market able to satisfy any kind of cutting professional demand.

GALLERY

VIDEO

SPECIFICATIONS

Blade diameter70 mm (2.75″), with hard metal counterblade
Blade descr.70SHSS, 4-edges, HSS steel
Blade Speed 1500 r.p.m.
Cutting ability18 mm (0.7″)
Powermonofase – 150 W
Max absorption1.25 A, with protection fuse
Net weight (with power supply cord)1150 g
Total weight (with packaging)2100 g
Electric cable length1.5 mt (estensibile)
Minimum brightness for working operations200 LUX
Vibrations at start up< 2.5 m/sec 2
Temperature range0 – 55 C
Umidity range10 – 95% without condensate

Safety

  • Safety start/stop device system
  • Heigh-adjustable trasparent fore blade protection
  • Fixed trasparent back blade protection
  • 1.25 A cut-off fuse
  • Double electric insulation
