3-phases Cutting Units

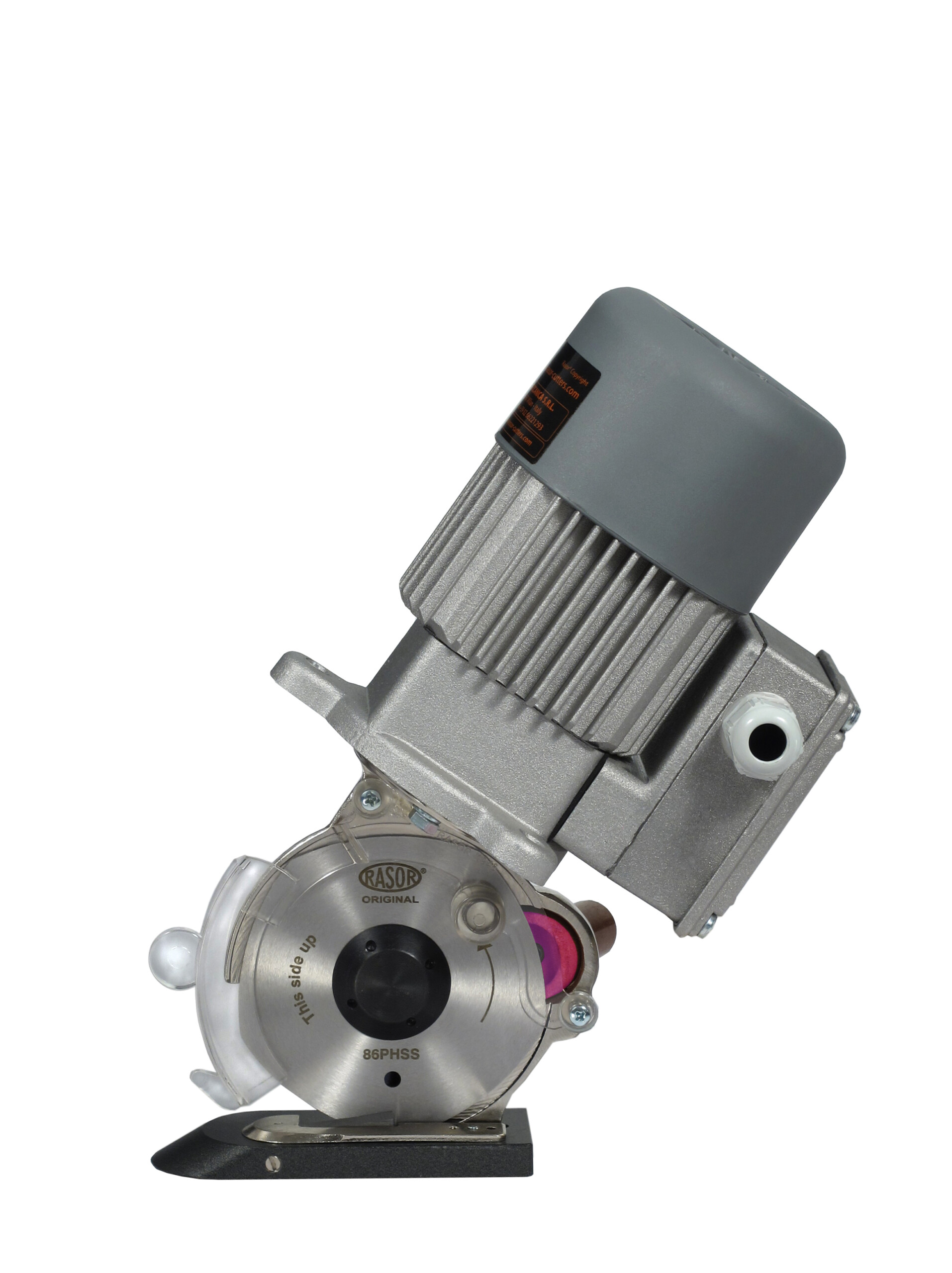

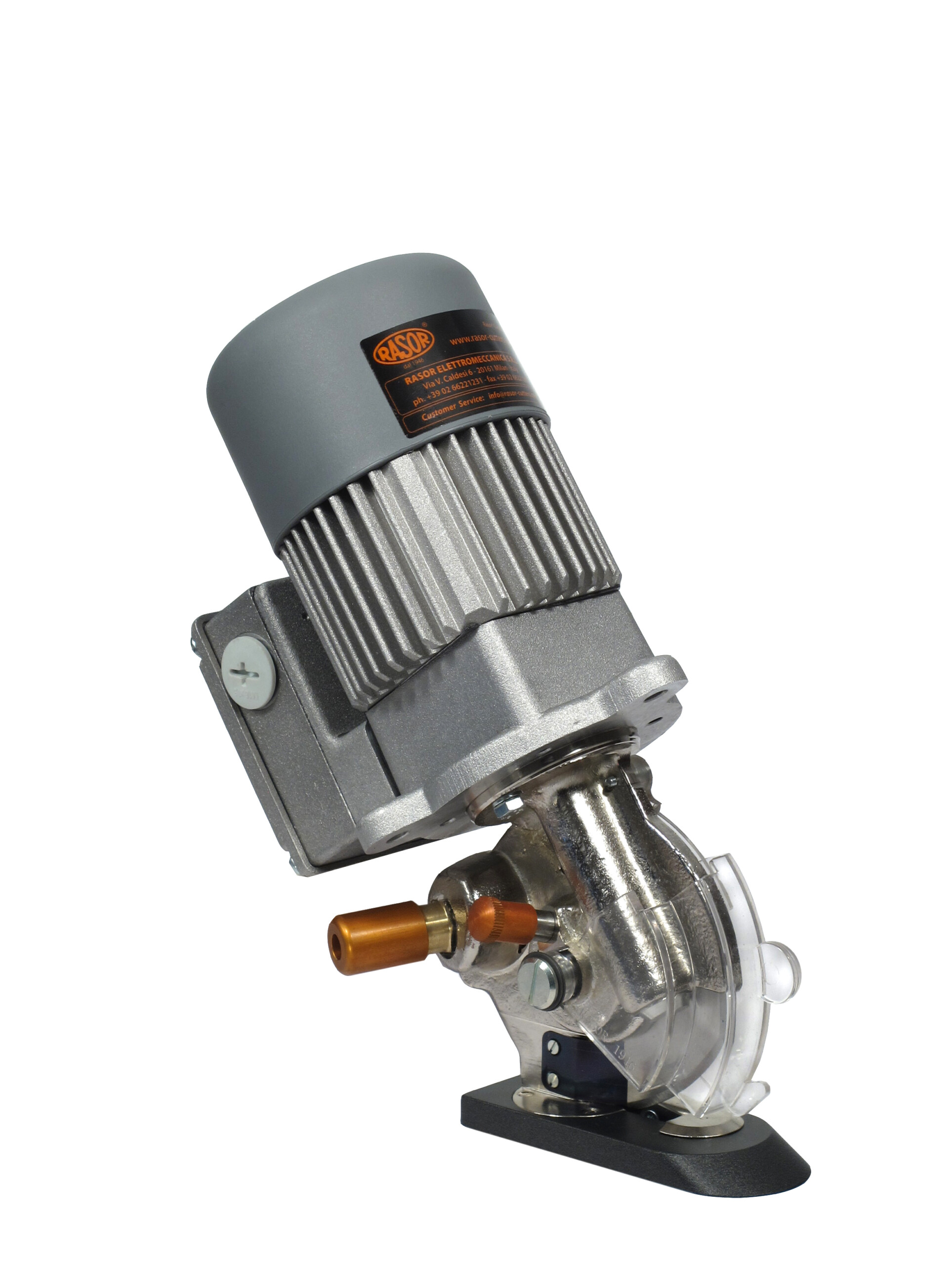

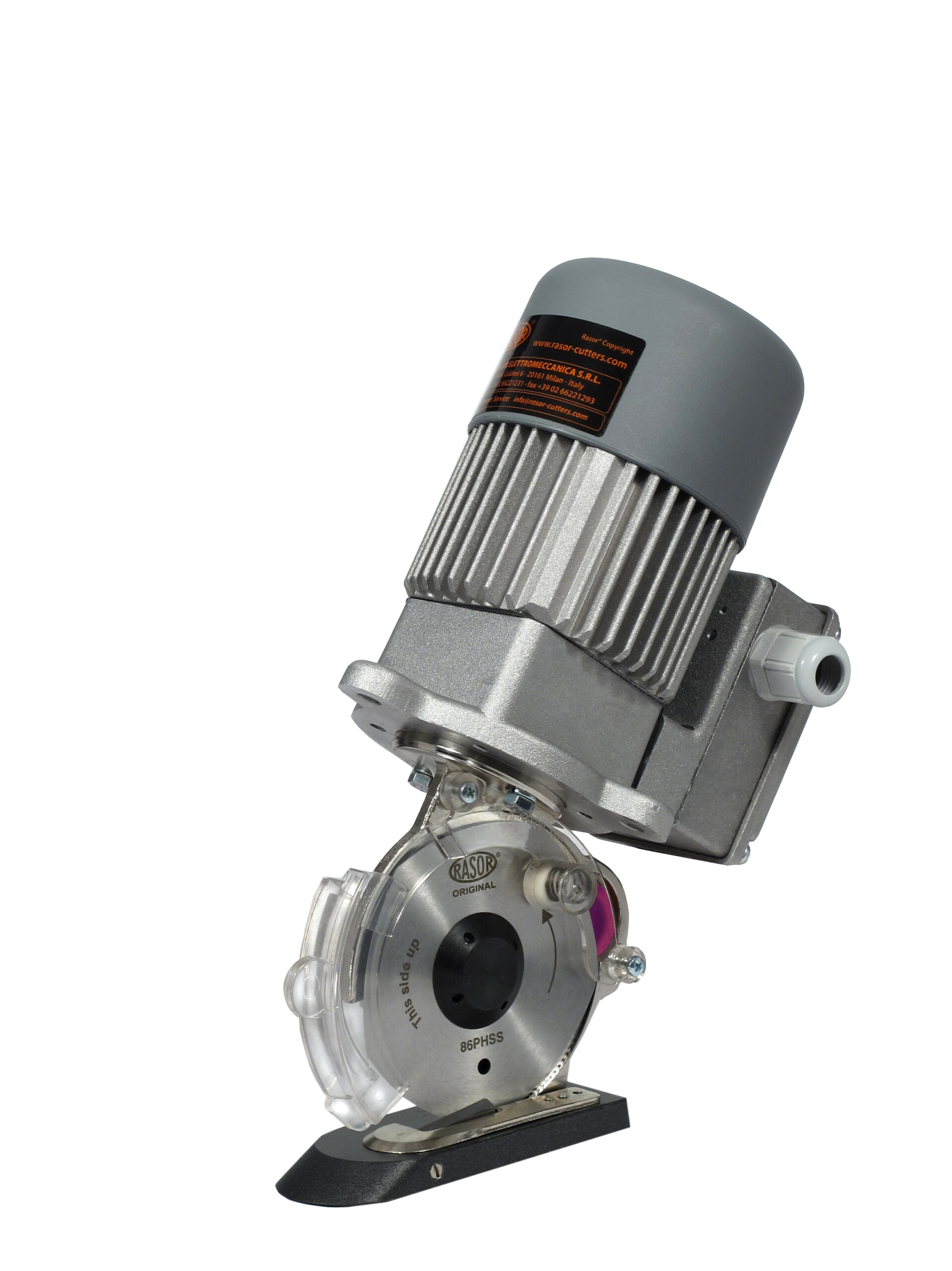

GRT-MINI
Model GRT-MINI is the smallest three-phase cutting unit with carbide counter-blade. For many years within the market it is installed on the main tendering machines. GRT-MINI is powerful, small and light (less than 3 Kg.). The 5-edges knife guarantee a clean cut without rag grinding. The new semi-automatic sharpening stone allows the sharpening of the knife edge to be done in less than 10 seconds without removing the knife. GRT-MINI is widely applied in textile, leather, light carpet or technical fabrics field. The three-phase induction motor is balanced and noiseless. This cutting unit does not need any maintenance so to be easily used during the production process on 24 hours-a-day. It is especially suitable for the transversal cut and it arranged with an anchor flange to be easily adjusted on fixed or automated hanger. The new Teflon® coated base is miniatured so that can be installed on sliding rails within a small space. The minimum maintenance and the minimum handling costs make GRT-MINI the cheap and reliable cutting solution for any O.E.M. application.
Specifications
| Blade diameter | 86 mm (3.4″), with hard metal counterblade |
|---|---|
| Blade descr. | 86PHSS, 5-edges, HSS steel |
| Blade speed | 550 r.p.m. |
| Cutting ability | 25 mm (1″) |
| Motor | 3-phases asynchronous 380/400* V, 50 Hz |
| Power | 55 W |
| Consumption | 0.3 A |
| Protection | IP20 – CL F |
| Net weight (with power supply cord) | 2650 g |
| Total weight (with packaging) | 4750 g |
| Electric cable length | 1.5 mt (with no plug) |
| Minimum brightness for working operations | 200 LUX |
| Vibrations at start up | < 2.5 m/sec 2 |
| Temperature range | 0 – 55 C |
| Umidity range | 10 – 95% without condensate * This model can be set up at 3-phase 220 V |
Safety
- Heigh-adjustable trasparent fore blade protection
- Fixed trasparent back blade protection
- CLF – IP20 electric insulation
