Electric Bench Cutters

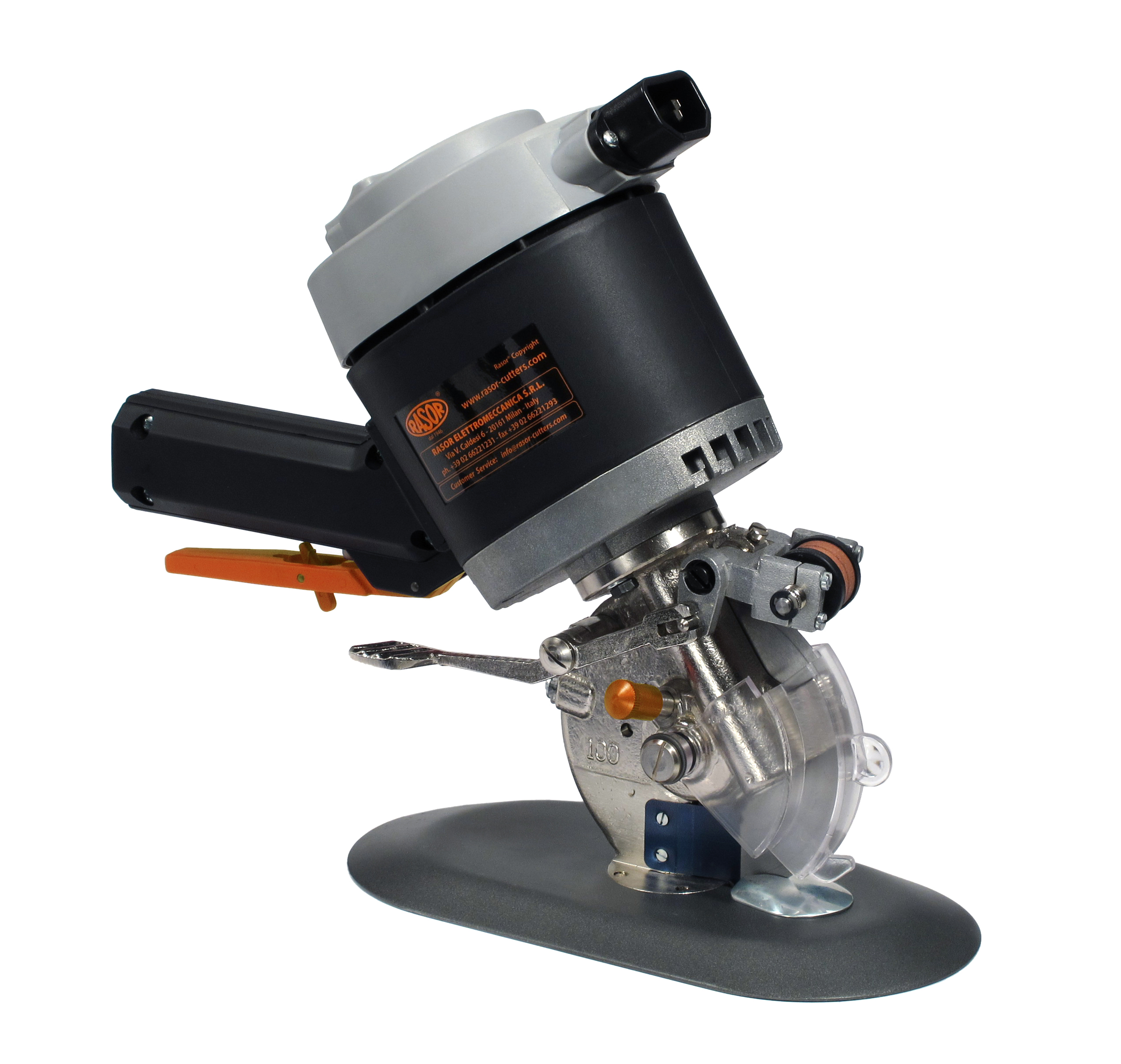

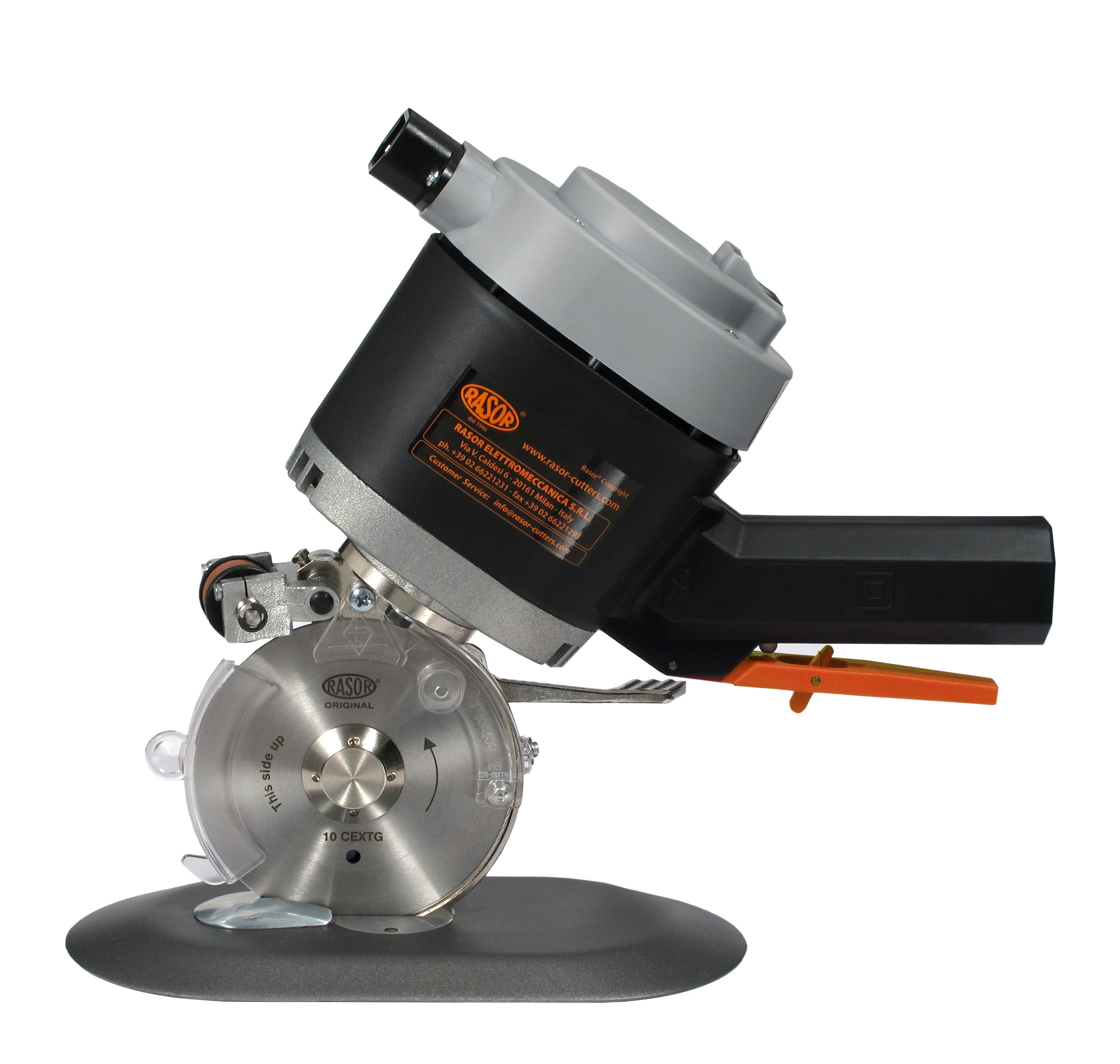

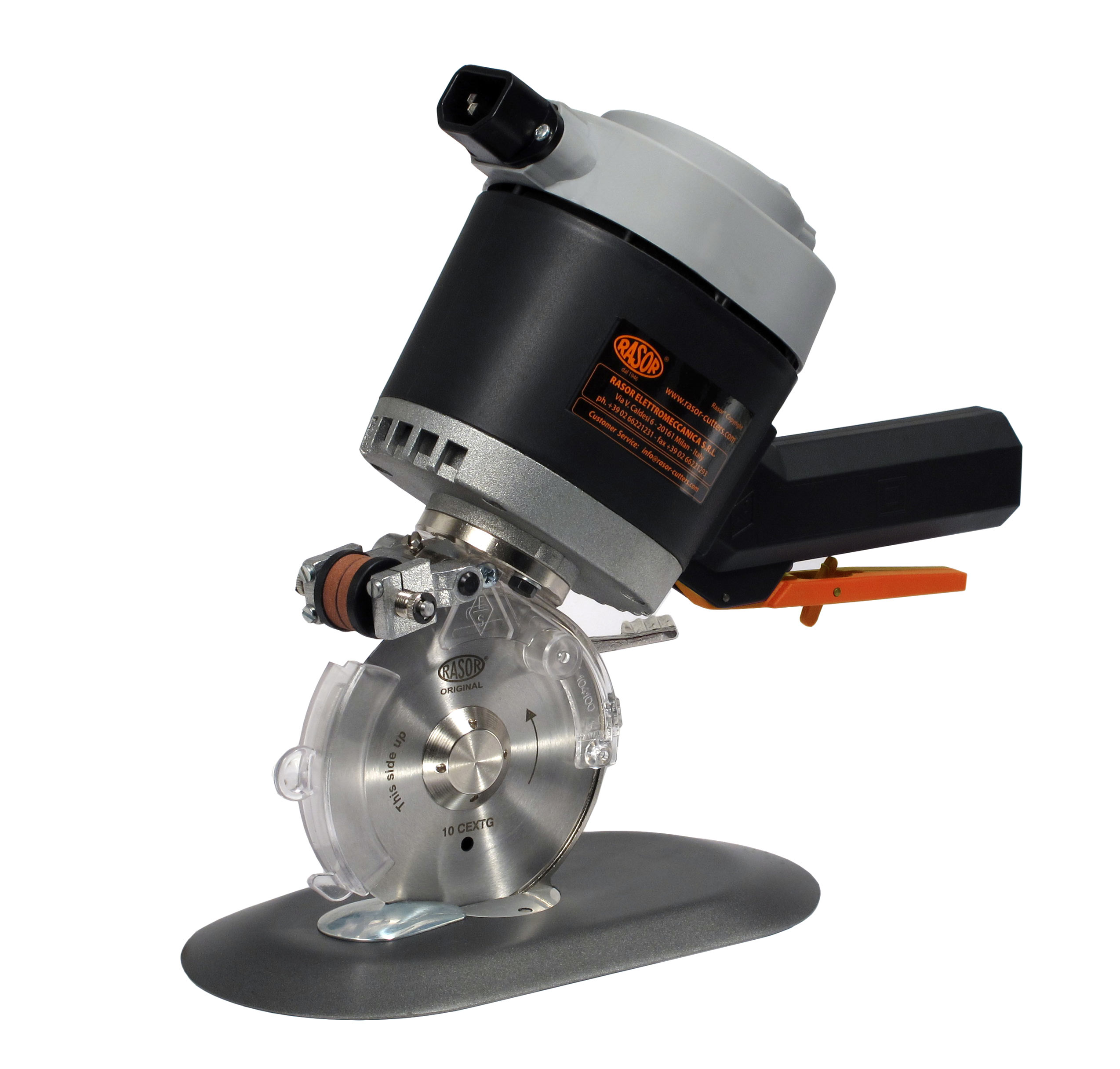

D100

For over 40 years within the market, the model D100 is the most efficient and popular bench cutting machine in textile application. It weighs less than 3 kilos and reached the highest level in technology and safety resulting a powerful and easy-handling cutting machine. It finds Wide application in textile field. It is especially suitable to cut natural fiber as cotton, wool or silk. The half-automatic sharpening stone system to be operated by a proper lever allows the sharpening of the knife edge to be done in less than 10 seconds without removing the knife. The aluminium base with rolls is Teflon® coated to be friction proof and to grant an easy feed with no efforts. The low maintenance and low operation cost make surely this model the best cutting machine for any application in textile field.

youtube

Specifications

Blade diameter 100 mm (4″)
Blade descr. 10CEXTG, circular, EXTRA steel
Blade speed 1000 r.p.m.
Cutting ability 35 mm (1.4″)
Power singlephase – 90 W
Max absorption 2 A, with protection fuse
Net weight (with power supply cord) 2950 g
Total weight (with packaging) 4650 g
Electric cable length 1.5 mt (with no plug)
Minimum brightness for working operations 200 LUX
Vibrations at start up < 2.5 m/sec 2
Temperature range 0 – 55 C
Umidity range 10 – 95% without condensate

Safety

  • Double safety start-up system device
  • Main power switch with Led indicator
  • Heigh-adjustable trasparent fore blade protection
  • Fixed trasparent back blade protection
  • 2 A cut-off fuse
  • Double electric insulation
