SW12SSX

SinglePhase Cutting Units

TEXTILE
LEATHER
TECHNICAL
COMPOSITE
SPORT

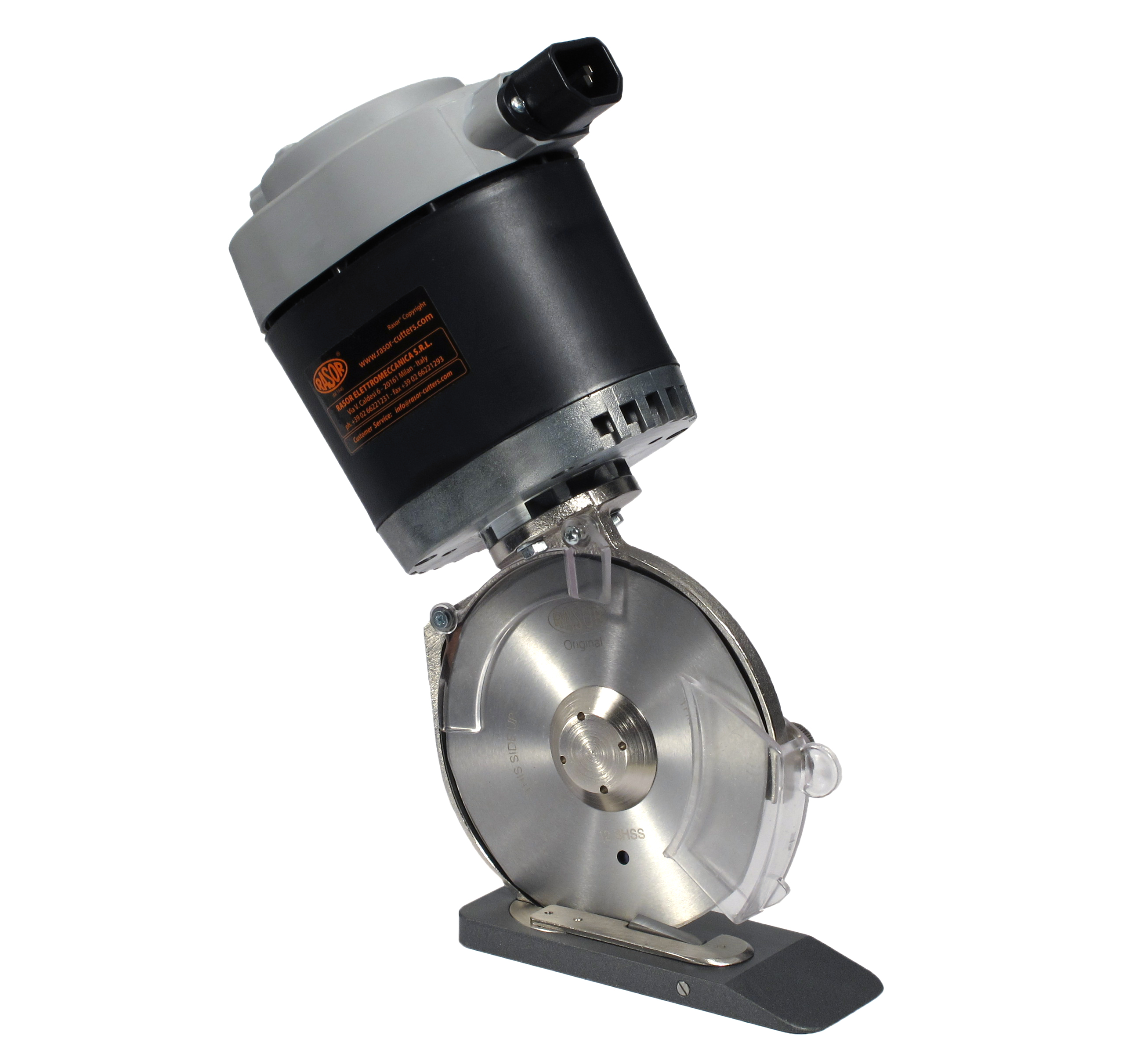

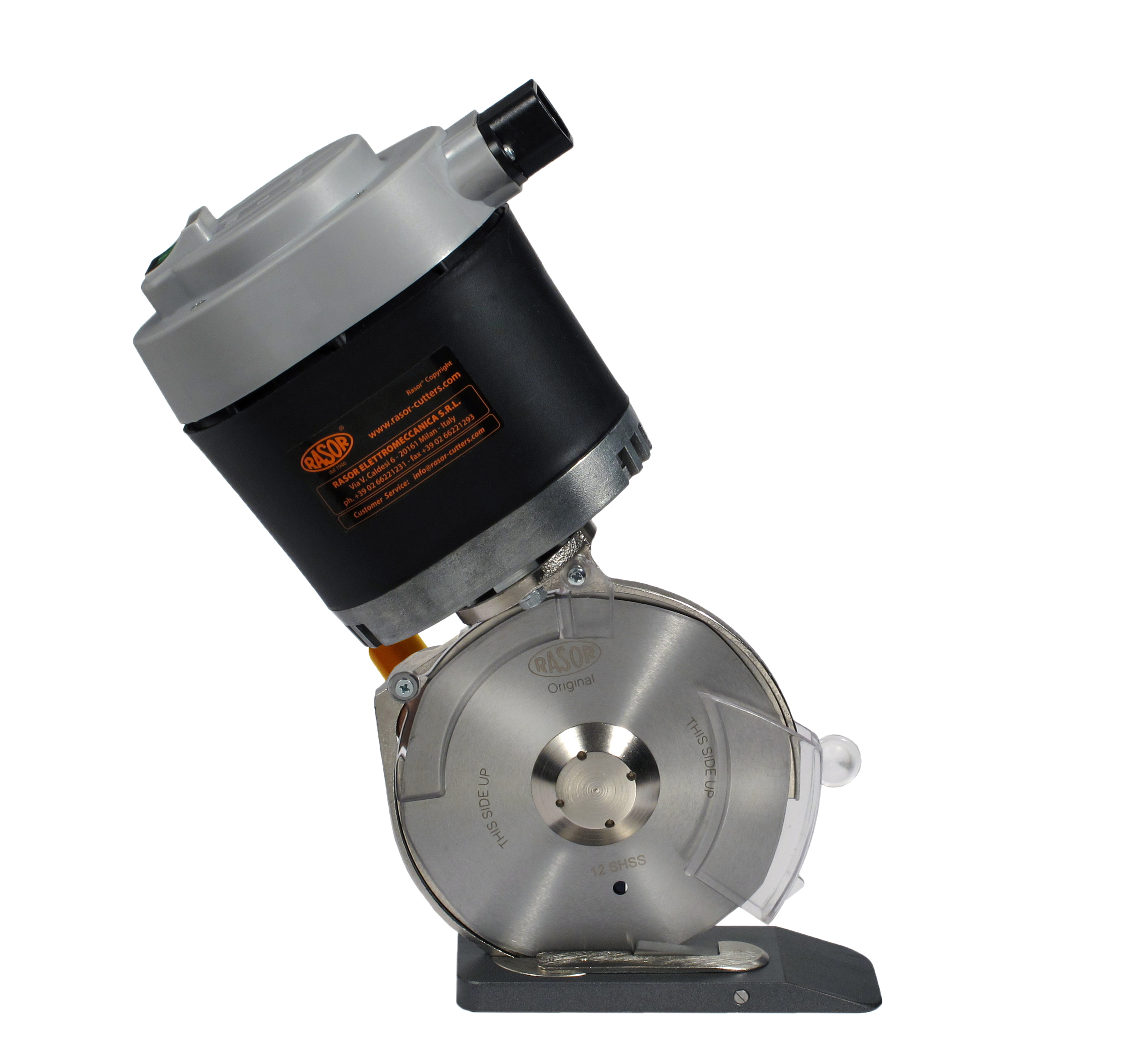

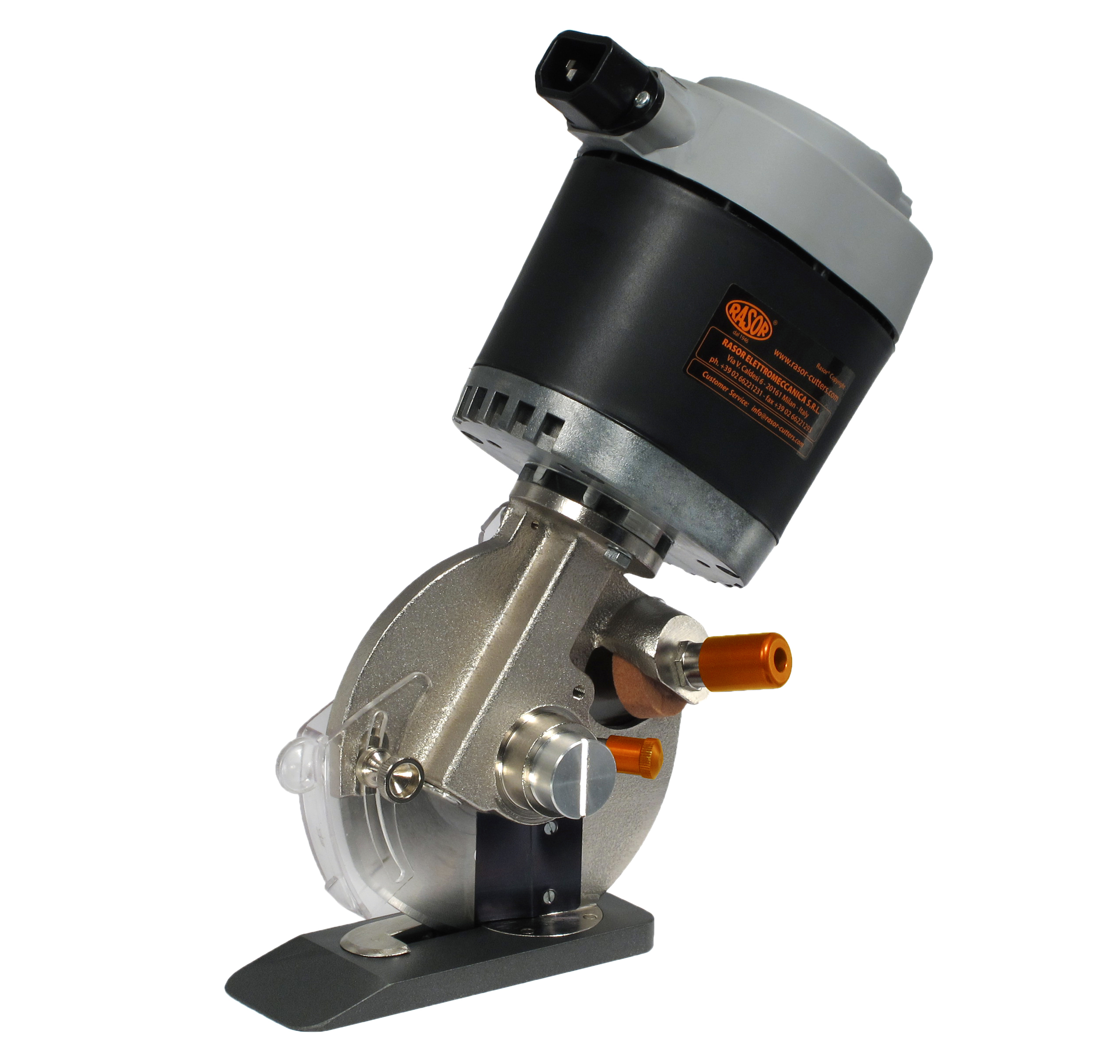

SW12SSX is a cutting unit for high thickness suitable for application in textile and technical fabrics fields. It reaches the highest level in technology and safety. It weighs 3Kg only but guarantee power and high thickness cutting reliability. The combination system of blade and counteblade allows sharp and precise cut without rag grinding. Its 180Watt balanced and silenced motor combined with high resistance bronze/steel gear couplings create a longlasting stability. The 8-edge 120mm diameter knife allows the cut of any fabric up to 50mm thickness even in multiple layers. SW12SSX base is Teflon® coated to be friction-free between the base and the fabric. It is possible to install this cutting unit on sliding rails within a minimum space. The push button sharpening stone system allows the sharpening of the knife edge in less than 10 seconds without removing the knife. This model is especially suitable to the transversal cut being arranged with an anchor flange which allows an easy fit on fixed or automatic stirrup. For the continous trimming process model SW12SSX is also available in right side version (specular) as model SW12S.

GALLERY

VIDEO

SPECIFICATIONS

Blade diameter 120 mm (4.7″), with hard metal counterblade
Blade descr.12SHSS, 8-edges, HSS steel
Blade speed 850 r.p.m.
Cutting ability 50 mm (2″)
Power singlephase – 180 W
Max absorption 2.5 A
Net weight (with power supply cord) 4500 g
Total weight (with packaging) 6200 g
Electric cable length1.5 mt (with no plug)
Minimum brightness for working operations200 LUX
Vibrations at start up< 2.5 m/sec 2
Temperature range0 – 55 C
Umidity range10 – 95% without condensate

Safety

  • Main power switch with Led indicator
  • Heigh-adjustable trasparent fore blade protection
  • Fixed trasparent back blade protection
  • Double electric insulation
