Pneumatic Cutting Units

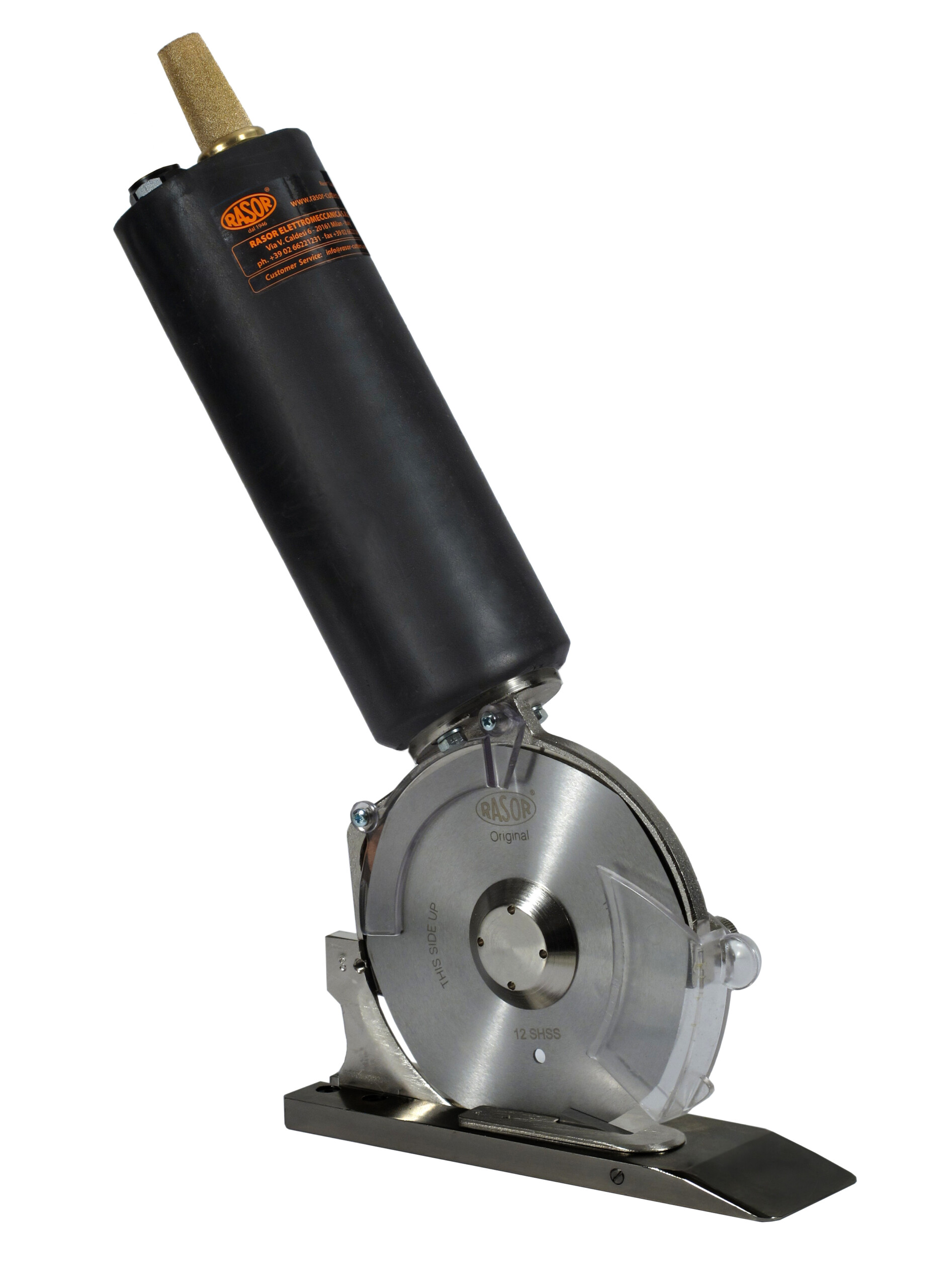

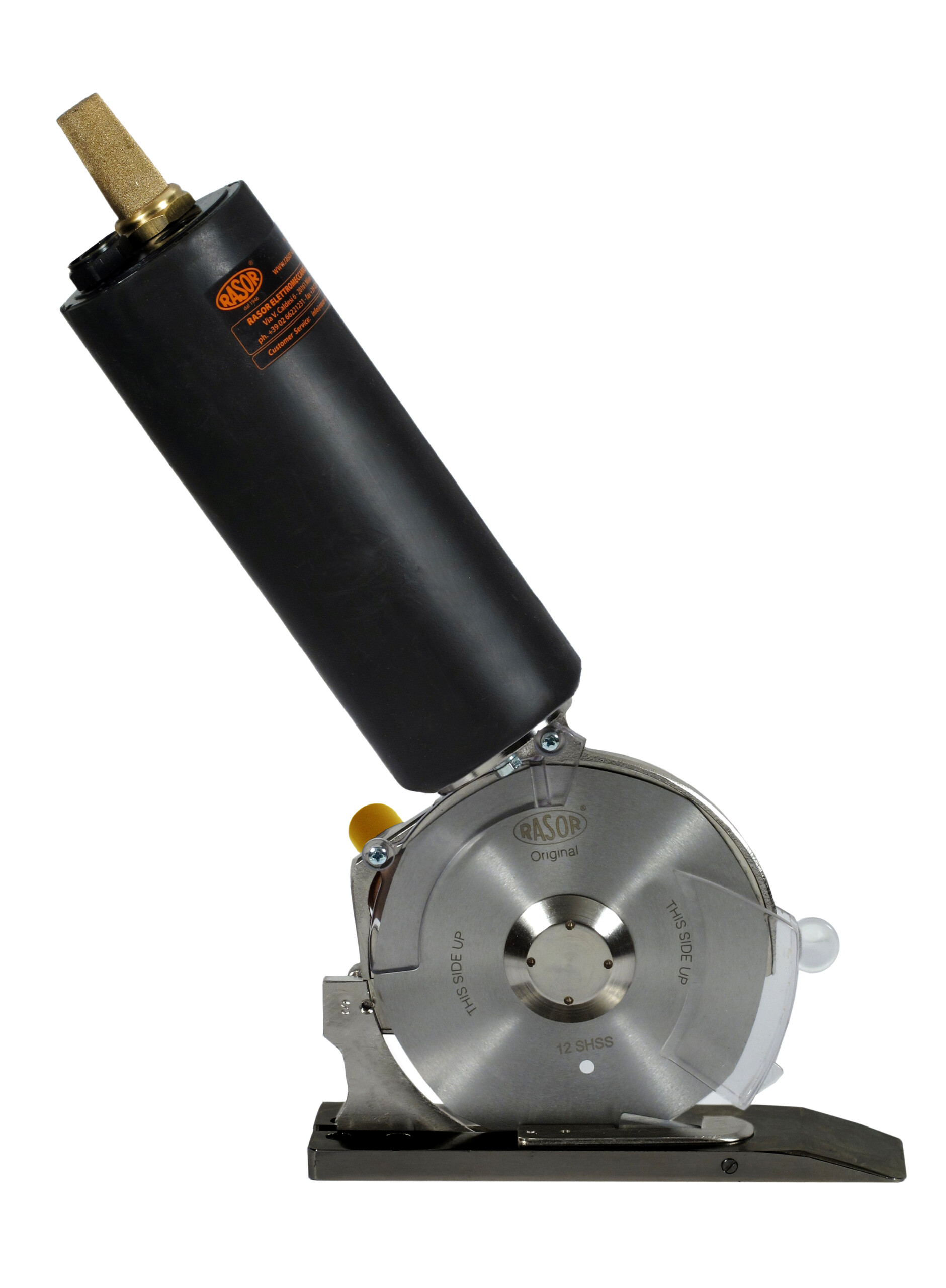

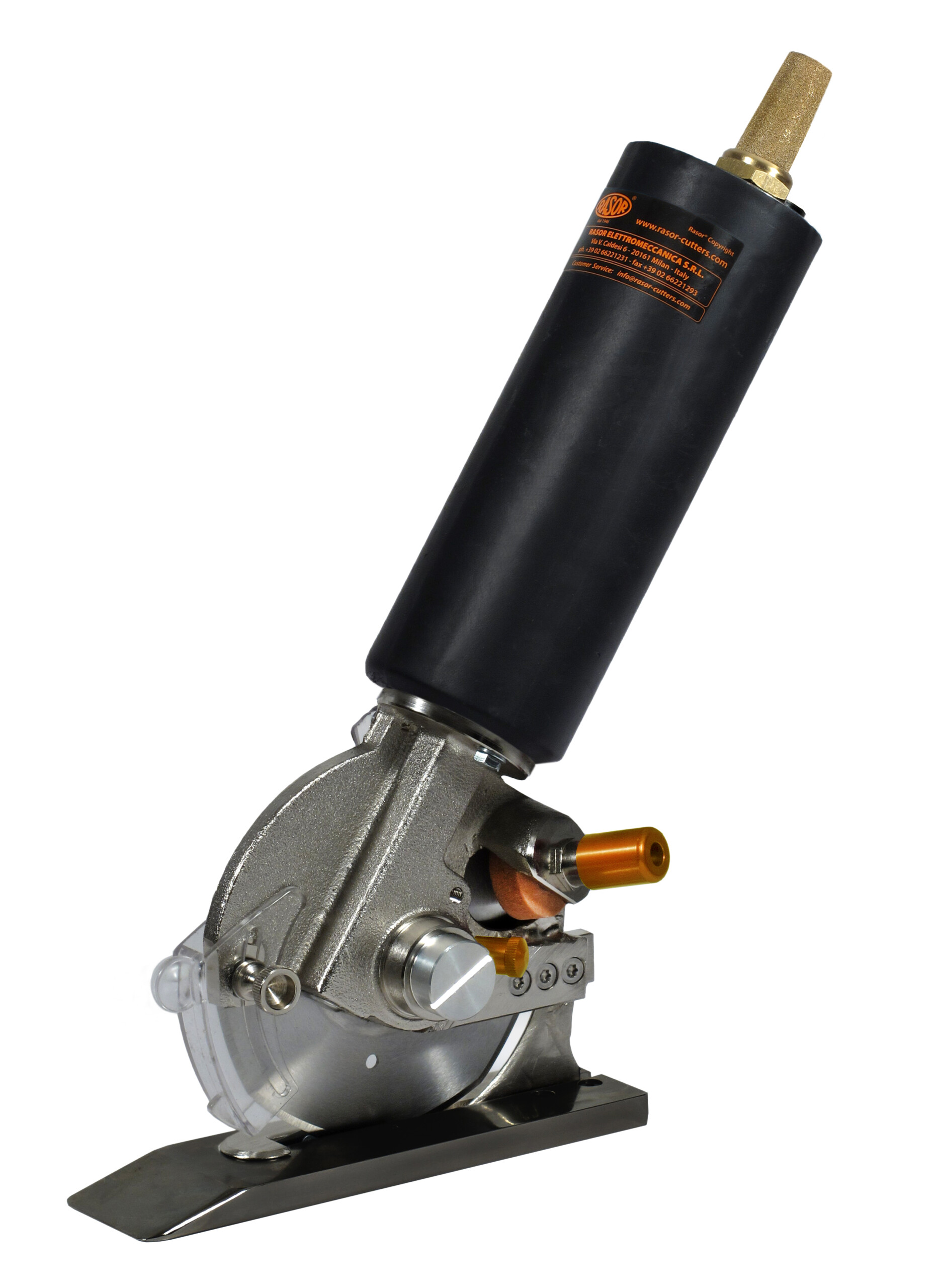

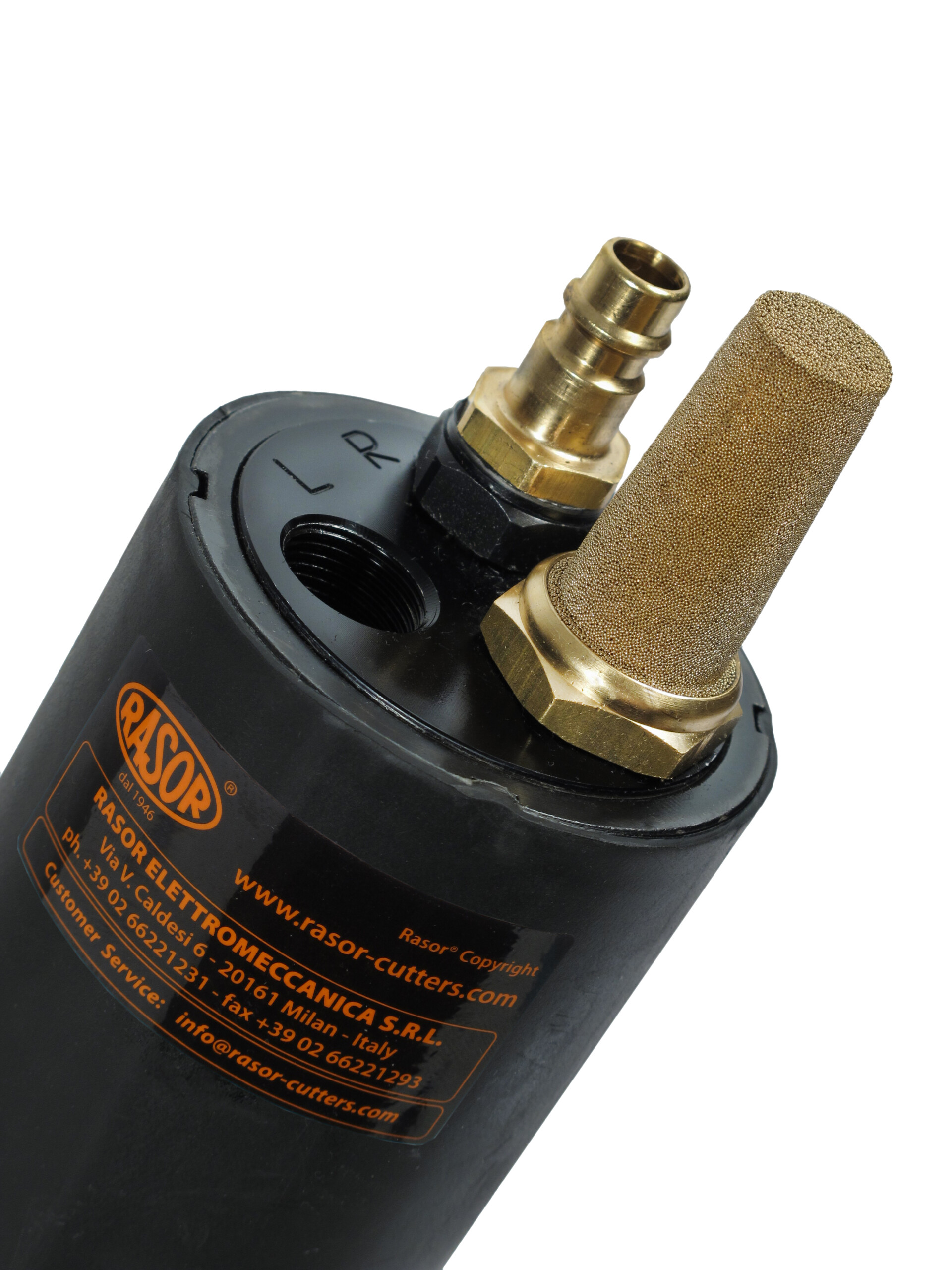

Model FP120SM is a pneumatic cutting unit for cutting textile, technical fabrics and composite material having high thickness even with multi-layer. This is the most powerful cutting unit that Rasor have ever produced. The air compressed motor is wholly made by Rasor. Thanks to the latest generation mechanical and pneumatic components, the excellent turbine reaches a power of 800 W at 15.500 RPM and a very high torque. Recently developed this model gives its excellency to the new geometry of the motor housing of Monster series. Differently from the other models of cutting units FP120SM has the motor housing held by a central foot fitted behind the blade in central position. This system spreads the shearing stress and the necessary stress to move the machine through the fabrics on both sides of the cutter and cut is so done perfectly straight and smooth. The knife is half-free on both sides to avoid winding problems even with tough fibers. FP120SM is especially suitable to cut composite materials like glass fiber, carbon fiber and kevlar. The installed knife of 120 mm diameter 8-edges allows the cutting of any kind of material at the "flexible stage" up to a cutting thickness of 50mm. The push button sharpening stone allows the sharpening of the knife edge to be done in less than 10 seconds without removing the knife. The high torque and the slow speed of the knife allow the cutting of rubber material with plastic base in the carpet and light flooring application. FP120SM is especially suitable for the transversal cut and to be installed in small spaces and it is arranged with an anchor flange easy to be fitted on fixed or automatic stirrup. The Teflon® coated aluminium base reduce the friction between the foot and the material and allow the easy forward movement even for an installation sliding rails. For the continuous trimming process FP120SM is also available in left right version (specular) as model FP120M. FP120SM simply equal to top power and top performance for your O.E.M. application.



Blade diameter 120 mm (4.7″), with hard metal counterblade
Blade descr. 12SHSS, 8-edges, HSS steel
Blade speed 550 r.p.m*
Cutting ability 50 mm (2″)
Power 800 W (at nominal air supply conditions)*
Working pressure 6 bar* (±1 bar) with lubricated air
Air consumption 18 l/sec*
Net weight 4300 g
Total weight (with packaging) 6000 g
Sound pressure 72 dB (EN ISO 15744)*
Vibrations at start up 1,36 m/sec2 (ISO 8662)*
Minimum brightness for working operations LUX 200
Temperature range 0 – 55 C
Umidity range 10 – 95% without condensate

* This model is also available in right side version (specular) as model FP120M
* The reported data are collected at a pressure of 6 bar (ISO 2787: 1984), recommended operating pressure
* Rasor recommend to use only dry air lubricated with special Rasor VG 5 pneumatic oil
