APPLICATIONS:
TEXTILE
TECHNICAL TEXTILE
COMPOSITE

Pneumatic Cutting Units

FP100

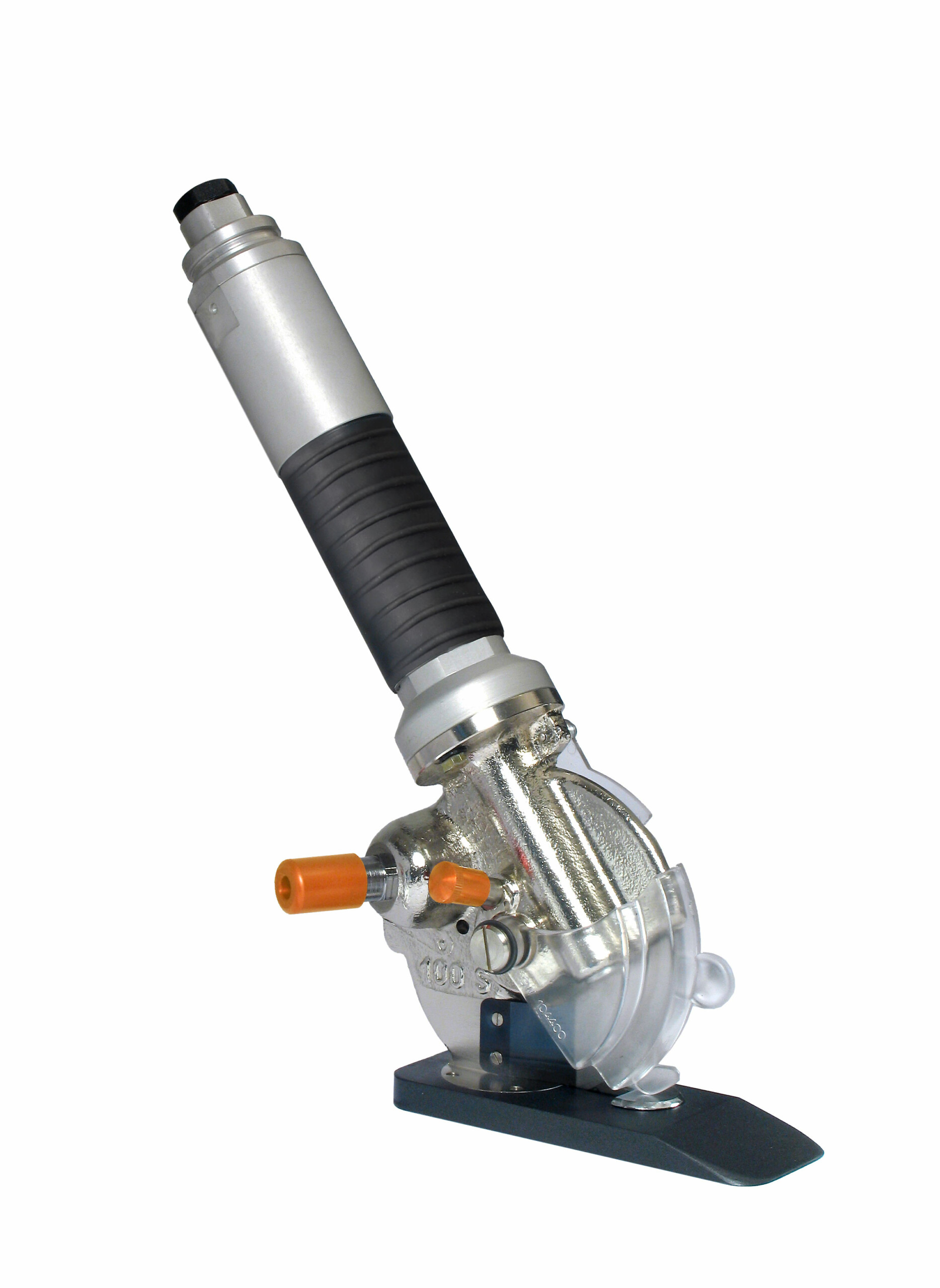

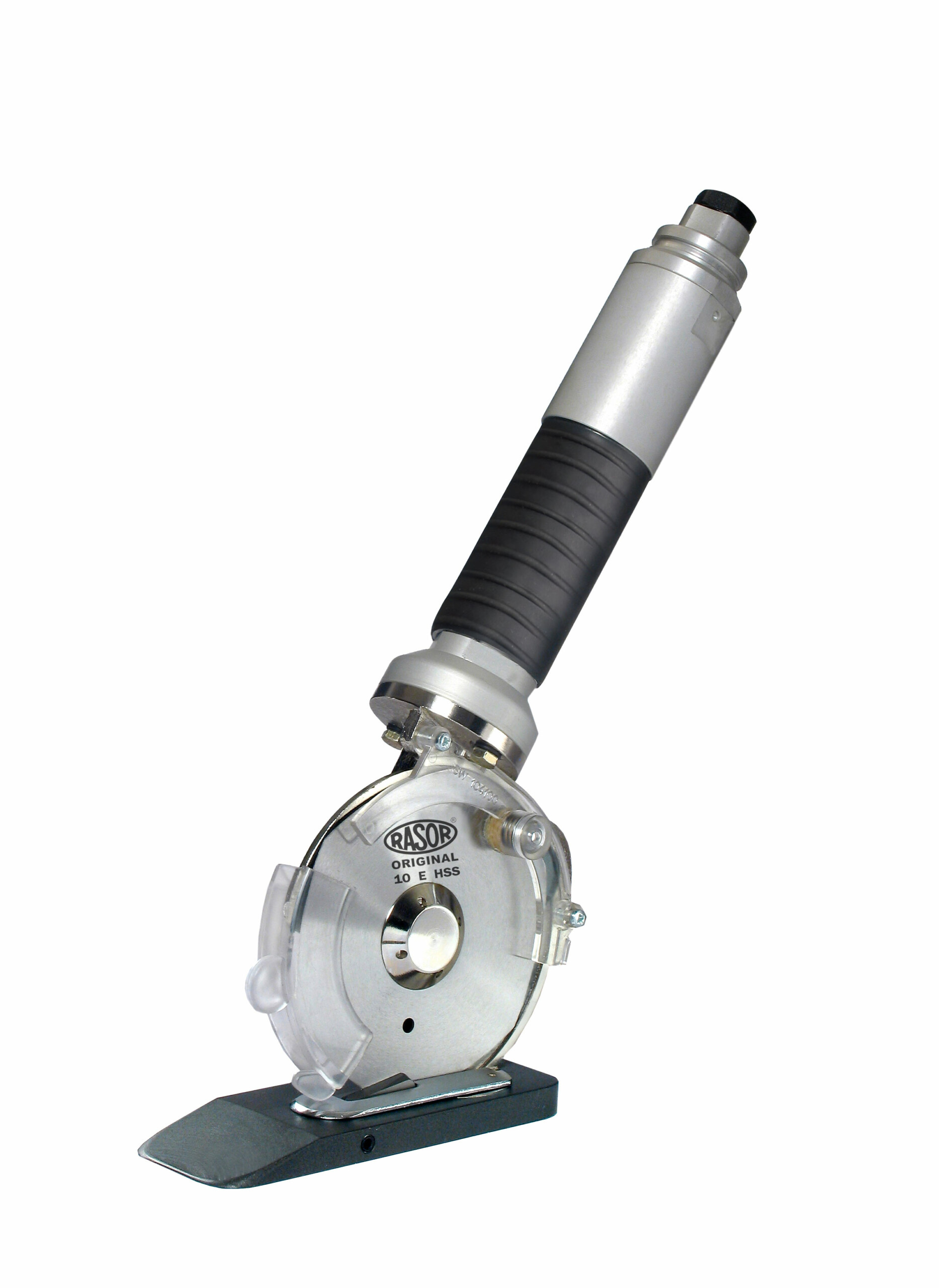

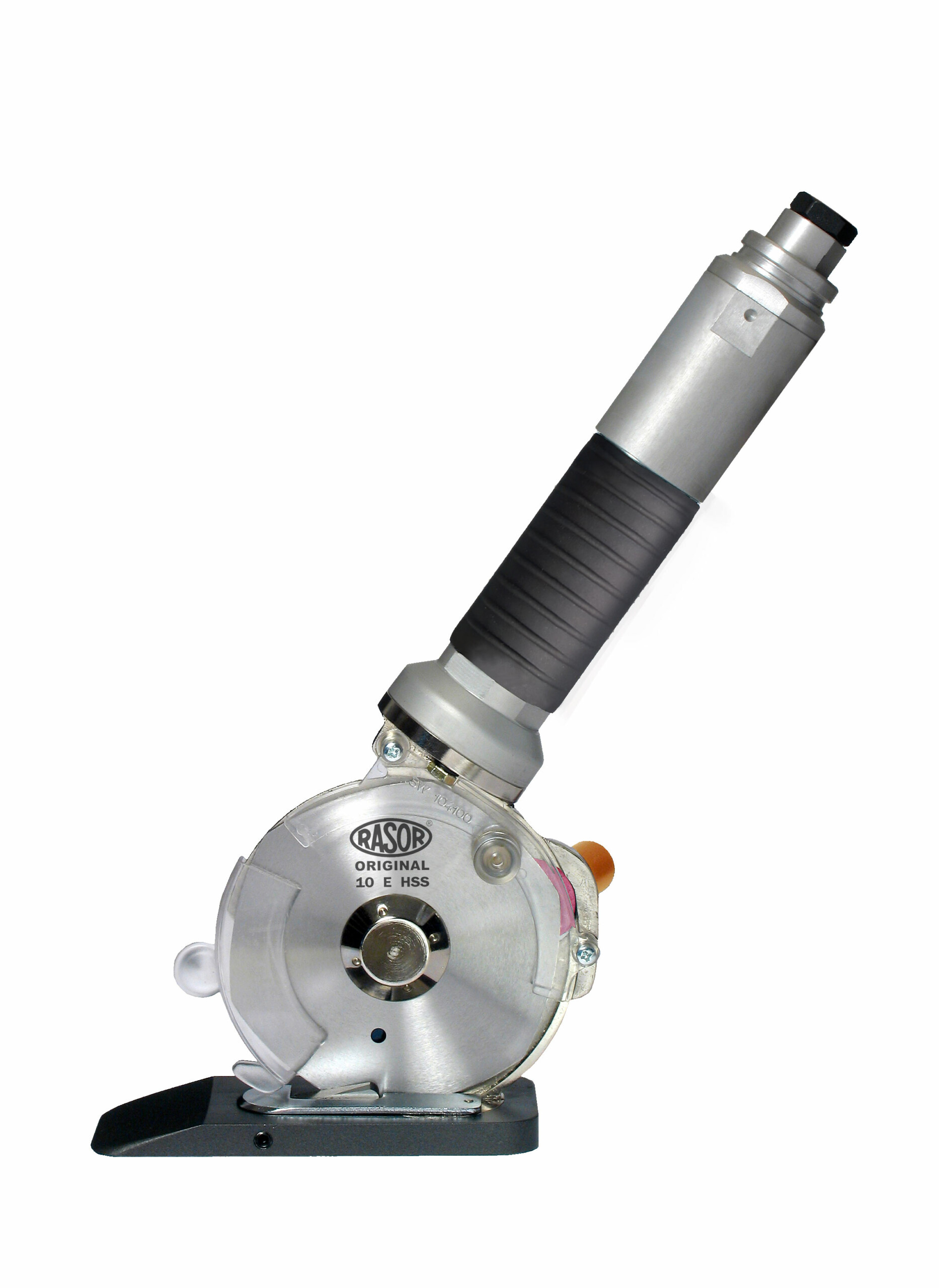

Model FP100 is a pneumatic cutting unit for the cutting of textile and technical fabrics. The air compressed motor is wholly made by Rasor. Thanks to the latest generation mechanical and pneumatic components, the excellent turbine reaches a power of 400W at 20,000 RPM and a high torque. The motor diameter is now of 40mm only that is the smallest within its cathegory. The rotor blades are made of VANESTAR® material which reduce to the minimum the weigth and the friction. The installed knife of 100mm diameter 6-edges allow the cutting of any kind of material at the "flexible stage" up to a cutting thickness of 35mm. The high torque and the slow speed of the knife allow the cutting of rubber material with plastic base in the carpet and light flooring application. Especially suitable for transversal cutting model FP100 is suitable to be installed in small spaces thanks to the vertical position of the motor. This model is arranged with an anchor flange easy to be fitted on fixed or automatic stirrup. The Teflon® coated base allows the easy movement of the cutting tool which can also be installed on sliding rails within a small space. For continuous trimming process FP100 is also available as left hand side version (specular) as model FP100L. The semi-automatic push button sharpening stone allows the sharpening of the knife edge to be done in less than 10 seconds without removing the knife. The small maintenance and small handling costs make the model FP100 the best solution for a powerfull and reliable cutting within any O.E.M. application.

youtube

Specifications

Blade diameter: 100 mm (4″), with hard metal counterblade

Blade descr. 10EHSS, 6-edges, HSS steel
Blade speed 900 r.p.m*
Cutting ability 35 mm (1.4″)
Power 400 W (at nominal air supply conditions)*
Working pressure 6 bar* (±1 bar) with lubricated air
Air consumption 9 l/sec*
Net weight 1350 g
Total weight (with packaging) 3050 g
Sound pressure 72 dB (EN ISO 15744)*
Vibrations at start up 1,36 m/sec2 (ISO 8662)*
Minimum brightness for working operations LUX 200
Temperature range 0 – 55 C
Umidity range 10 – 95% without condensate

* This model is also available in left side version (specular) as model FP100L

* The reported data are collected at a pressure of 6 bar (ISO 2787: 1984), recommended operating pressure
* Rasor reccomend to use only dry air lubricated with special Rasor VG 5 pneumatic oil

Safety

  • Heigh-adjustable trasparent fore blade protection
  • Fixed trasparent back blade protection
